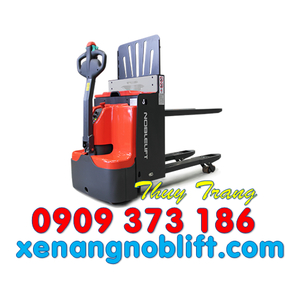

XE NÂNG ĐIỆN THẤP 2000 KG

PT 20L

0909373186

NOBLIFT - GERMANY

12 THÁNG

XE NÂNG ĐIỆN THẤP 2000 KG

HOTLINE TƯ VẤN : 0909 373 186

Type sheet for industrial truck acc. to VDI 2198

1KG=2.2LB 1INCH=25.4mm



Distinguishing mark

1.2

Manufacturer`s type designation



PT 20I



1.3

Drive



electric



1.4

Operator type



pedestrian



1.5

Load capacity / rated load

Q ( t)

2



Q   kg



Load capacity at mast lift

Q ( t)

1.0 1)




Load capacity at support arm lift

Q ( t)

2.0 1)




1.6

Load center distance

C ( mm)

600



1.8

Load distance ,centre of drive axle to fork

X(mm)

872



1.9

Wheelbase

Y (mm)

1481



Weight

2.1

Service weight

kg

690



2.2

Axle loading, laden front/rear

kg

703/1985



2.3

Axle loading, unladen  front/rear

kg

420/268



Tyres, chassis

3.1

Tires



polyurethane



3.2

Tire size, front

? × w (mm)

? 230 ×75



3.3

Tire size, rear

? × w (mm)

? 80×70



3.4

Additional wheels(dimensions)

? × w (mm)

? 100×40



3.5

Wheels,number front/rear(x=driven wheels)



1×+2/4



3.6

Tread, front

b10 (mm)

500



3.7

Tread, rear

b11 (mm)

380



Wheels, Chassis

4.2

Lowered mast height

h1 (mm)

870



4.4

lift

h3 (mm)

550




4.5

Extended maximal height

h4 (mm)

1530



4.5

Extended maximal height



4.6

Initial lift

h5(mm)

120




4.9

Height of tiller in drive position min./ max.

h14 (mm)

750/1250



4.15

Height, lowered

h13 (mm)

90



4.19

Overall length

l1 (mm)

1915



4.2

Length to face of forks

l2 (mm)

765



4.21

Overall width

b1 (mm)

730



4.22

Fork dimensions

s/e/l (mm)

60 / 180 / 1150



4.25

Distance between fork- arms

b5 (mm)

560/510



4.32

Ground clearance, centre of wheelbase

m2 (mm)

25



4.33

Aisle width for pallets 1000×1200 crossways

Ast (mm)

2450



4.34

Aisle width for pallets 800×1200 lengthwise

Ast (mm)

2355



4.35

Turning radius

Wa(mm)

1640



Performance data

5.1

Travel speed, laden/ unladen

km/h

4.8/5.0



5.2

Lift speed, laden/ unladen

mm/s

90/130



5.3

Lowering speed, laden/ unladen

mm/s

80/65



5.8

Max. gradeability, laden/ unladen

%

6/10



5.1

Service brake



Electric-magnetic



Electric- motor

6.1

Drive motor rating  S2 60min

kW

1.5 (AC)



6.2

Lift motor rating at S3 10%

kW

1.2



6.3

Battery acc. to DIN 43531/ 35/ 36 A, B, C, no



3VBS



6.4

Battery voltage, nominal capacity K5

V/ Ah

24/210



6.5

Battery weight

kg

185



6.6

Energy consumption acc. to VDI cycle

kWh/h

1



Addition data

8.1

Type of drive control



3-phase AC technology



8.4

Sound level at driver`s ear acc. to EN 12053

dB(A)

<70



1) in double-deck operation: mast lift 1.0t,support arm lift 1.0t
