Type sheet for industrial truck acc.to VID 2198 1KG=2.2LB 1INCH=25.4MM

Distinguishing
mark

1.2

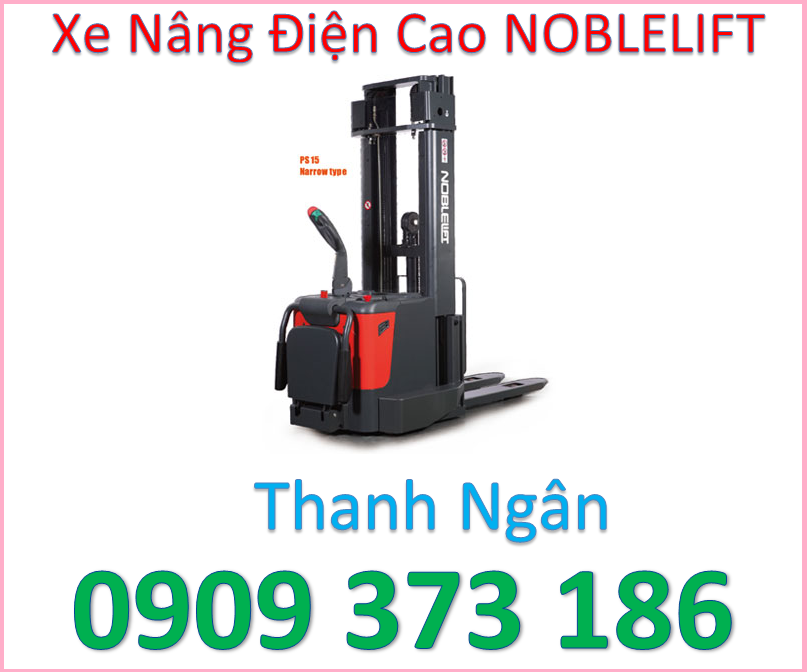

Manufacturer`s type designation

PS 16

1.3

Power (battery ,diesel, petrol, gas, manual)

Battery

1.4

Operator type

Pedestrian

1.5

Load Capacity / rated load

Q (t)

1.5

1.6

Load centre distance

C (mm)

600

1.8

Load distance ,centre of drive axle to fork

X (mm)

765

1.9

Wheelbase

Y(mm)

1519

Weight

2.1

Service weight

kg

1596

2.2

Axle loading, laden front/rear

kg

1345/1663

2.3

Axle loading, unladen front/rear

kg

955/553

Tyres, chassis

3.1

Tires

Polyurethane (PU)

3.2

Tire size, front

Ø x w (mm)

Ø230×75

3.3

Tire size, rear

Ø x w (mm)

Ø 80× 70

3.4

Additional wheels(dimensions)

Ø x w (mm)

Ø124x60

3.5

Wheels, number front/rear(x=driven wheels)

1x+2/4

3.6

Tread, front

b10 (mm)

750

3.7

Tread, rear

b11 (mm)

390

Dimensions

4.2

Lowered mast height

h1 (mm)

2220

4.3

Free lift height

h2 (mm)

1660

4.4

Lift

h3 (mm)

4915

4.5

Extended mast height

h4 (mm)

5520

4.9

Height of tiller in drive position min./ max.

h14 (mm)

1370/945

4.15

Height, lowered

h13 (mm)

85

4.19

Overall length

l1 (mm)

2180

4.2

Length to face of forks

l2 (mm)

1030

4.21

Overall width

b1 (mm)

1000

4.22

Fork dimensions

s/e/l (mm)

60/180/1150

4.25

Distance between fork- arms

b5 (mm)

570

4.32

Ground clearance, centre of wheelbase

m2 (mm)

25

4.33

Aisle width for pallets 1000X1200 lengthways

Ast (mm)

2645

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

2592

4.35

Turning radius

Wa (mm)

1806

Performance data

5.1

Travel speed, laden/unladen

Km/h

6.0/6.0

5.2

Lift speed, laden/ unladen

m/s

0.141/0.212

5.3

Lowering speed, laden/ unladen

m/s

0.227/0.178

5.8

Max. gradeability performance, laden/ unladen

%

41802

5.1

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating S2 60min

kW

1.3

6.2

Lift motor rating at S3 15%

kW

3

6.3

Battery acc. to DIN 43531/35/36 A, B, C, no

B,3PzS

6.4

Battery voltage, nominal capacity K5

V/Ah

24/ 350

6.5

Battery weight

kg

288

6.6

Energy consumption acc. to VDI cycle

kWh/h

2.1

Additional data

8.1

Type of drive control

AC- Speed Control

8.4

Sound level at driver's ear according to EN 12053

dB(A)

70
